LDE series - straight version
PRODUCT DESCRIPTION
| Type | N·m (min-max) | lbf·ft (min-max) | ~ U/min | Square Drive | Ø D (mm) | H (mm) | kg |
| LDE-05 | 90 – 500 | 70 – 370 | 44 | 3/4″ | 80 | 405 | 4.5 |
| LDE-075 | 100 – 750 | 80 – 550 | 22 | 3/4″ | 80 | 439 | 5 |
| LDE-15 | 250 – 1500 | 180 – 1110 | 20 | 1″ | 88 | 455 | 6.1 |
| LDE-28 | 350 – 2800 | 260 – 2050 | 6 | 1″ | 88 | 495 | 7.3 |
| LDE-40 | 500 – 4000 | 370 – 2950 | 5 | 1″ | 88 | 495 | 7.3 |
| LDE-60 | 700 – 6000 | 520 – 4400 | 3.5 | 1½” | 102 | 515 | 9.2 |

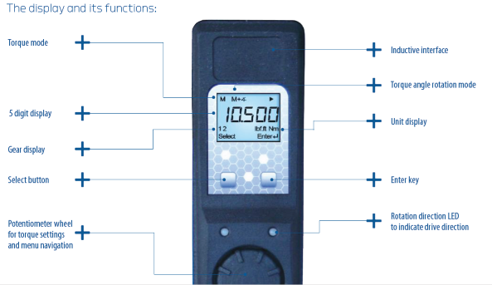

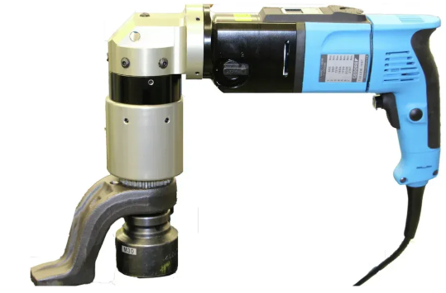

LEW series - angled version with display
PRODUCT DESCRIPTION
| Type | N·m (min-max) | lbf·ft (min-max) | ~ U/min | Square Drive | Ø D (mm) | H (mm) | kg |
| LEW-05 | 90 – 500 | 70 – 370 | 44 | 3/4″ | 80 | 187 | 5.8 |
| LEW-075 | 100 – 750 | 80 – 550 | 22 | 3/4″ | 80 | 220 | 6.4 |
| LEW-15 | 250 – 1500 | 180 – 1110 | 20 | 1″ | 88 | 236 | 7.3 |
| LEW-28 | 350 – 2800 | 260 – 2050 | 6 | 1″ | 88 | 276 | 8.6 |
| LEW-40 | 500 – 4000 | 370 – 2950 | 5 | 1″ | 88 | 276 | 8.6 |
| LEW-60 | 700 – 6000 | 520 – 4400 | 3.5 | 1½” | 102 | 296 | 10.7 |
| LEW-70 | 850 – 7500 | 630 – 5500 | 3 | 1½” | 128 | 311 | 12.9 |
| LEW-95 | 1100 – 9500 | 810 – 7000 | 2.5 | 1½” | 142 | 323 | 14.6 |
| LEW-120 | 1600 – 13000 | 1180 – 9500 | 2 | 1½” | 174.5 | 340 | 20.6 |
