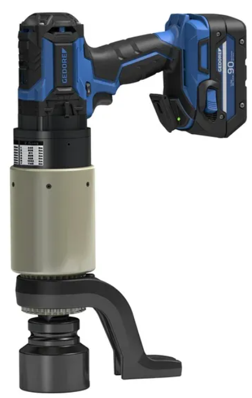

Digital High‑torque cordless screwdriver
Digital Cordless Torque Wrench having 2 Speed Planetary Gear Box System where one gear is for high-speed run down & another gear for final torque adjustment
Features:
| Ø Microprocessor-Controlled Switch-Off Electronics | ||||||||||||
| Ø Brushless Motors. | ||||||||||||
| Ø Automatic device switch-off when torque achieved. | ||||||||||||
| Ø Wrench slackens (back off) after torque is applied. | ||||||||||||
| Ø Sunlight-readable colour display. | ||||||||||||
| Ø Documentation of over 10,000 bolted-connections and pre-defining of different bolting operation with the DOCU module. | ||||||||||||
| Ø Consistent peak power until battery is completely discharged. | ||||||||||||
Digital High‑torque cordless screwdriver
PRODUCT DESCRIPTION
| Type | N·m (min-max) | lbf·ft (min-max) | ~ U/min | Square Drive | Ø D (mm) | H (mm) | kg |
| LDA-05 Solution | 90-500 | 66-369 | 46 | 3/4″ | 80 | 294 | 3.4 |
| LDA-07 Solution | 120-700 | 86-516 | 29 | 3/4″ | 80 | 326 | 4 |
| LDA-12 Solution | 200-1,200 | 148-885 | 20 | 3/4″ | 80 | 326 | 4 |
| LDA-15 Solution | 250-1,500 | 184-1107 | 15 | 1″ | 88 | 342 | 5.1 |
| LDA-22 Solution | 300-2,200 | 221-1623 | 10 | 1″ | 90 | 360 | 5.7 |
| LDA-32 Solution | 400-3,200 | 290-2360 | 7 | 1″ | 88 | 383 | 6.2 |
| LDA-40 Solution | 500-4,000 | 369-2950 | 5.5 | 1″ | 88 | 383 | 6.2 |
| LDA-60 Solution | 700-6,000 | 516-4425 | 3.5 | 1½” | 102 | 398 | 7.9 |
| LAW-12 Solution | 200-1,200 | 148-885 | 20 | 3/4″ | 80 | 223 | 5.3 |
| LAW-22 Solution | 300-2,200 | 221-1623 | 10 | 1″ | 90 | 255 | 7 |
| LAW-32 Solution | 400-3,200 | 332-2360 | 7 | 1″ | 88 | 279 | 7.4 |
| LAW-40 Solution | 500-4,000 | 290-2360 | 5.5 | 1″ | 88 | 279 | 7.4 |
| LAW-60 Solution | 700-6,000 | 510-4425 | 3.5 | 1½” | 102 | 295 | 9.2 |
High‑torque cordless screwdriver
PRODUCT DESCRIPTION
Drive Non-Digital Cordless Torque Wrench Having 2 Speed Planetary Gear Box System Along with Microprocessor-Controlled Switch-Off Electronics with Brushless Motors and LED status signal
| Type | N·m (min-max) | lbf·ft (min-max) | ~ U/min | Square Drive | Ø D (mm) | H (mm) | kg |
| LDA-05 | 90 – 500 | 60 – 370 | 46 | 3/4″ | 80 | 255 | 3.3 |
| LDA-07 | 120 – 700 | 80 – 520 | 29 | 3/4″ | 80 | 287 | 3.9 |
| LDA-12 | 200 – 1200 | 150 – 890 | 20 | 3/4″ | 80 | 287 | 3.9 |
| LDA-15 | 250 – 1500 | 180 – 1110 | 15 | 1″ | 88 | 303 | 5 |
| LDA-22 | 300 – 2200 | 220 – 1630 | 10 | 1″ | 90 | 321 | 5.6 |
| LDA-32 | 400 – 3200 | 290 – 2360 | 7 | 1″ | 88 | 344 | 6.1 |
| LDA-40 | 500 – 4000 | 370 – 2950 | 5.5 | 1″ | 88 | 344 | 6.1 |
| LDA-60 | 700 – 6000 | 510 – 4430 | 3.5 | 1½” | 102 | 359 | 7.8 |
| LAW-12 | 200 – 1200 | 150 – 890 | 20 | 3/4″ | 80 | 223 | 5.2 |
| LAW-22 | 300 – 2200 | 220 – 1630 | 10 | 1″ | 90 | 255 | 6.9 |
| LAW-32 | 400 – 3200 | 290 – 2360 | 7 | 1″ | 88 | 279 | 7.3 |
| LAW-40 | 500 – 4000 | 370 – 2950 | 5.5 | 1″ | 88 | 279 | 7.3 |
| LAW-60 | 700 – 6000 | 510 – 4425 | 3.5 | 1½” | 102 | 295 | 9.1 |
